Project manager
The project manager allows you to create, maintain and search your diverse resources. The available resource types you will find in the tite menu below the entry 'resource':

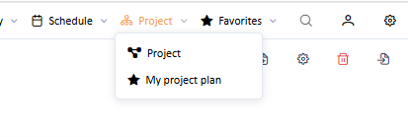

List of available project types and favorites
If you miss some project types than it might be that your administrator did not grant the necessary rights.
Below the project types you find saved project favorites, list of projects with user specific filters and table columns or project planning calendars you frequently use to plan project tasks.

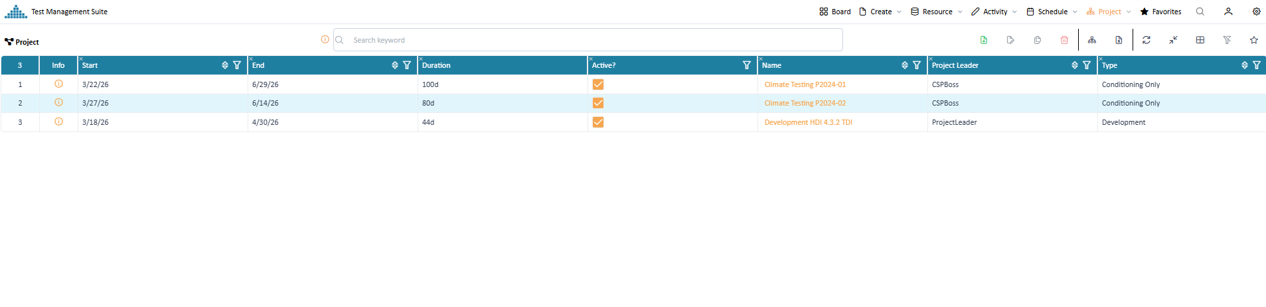

List of projects
Customize list view (General)
To fit list views to your needs to application provides you with powerful ways to customize your view.
List view customization
Filtering
To filter the shown data you can set a list of different filters.
Key word filter (pic 1)
Entering one or several keyword expressions will search the entire data structure of each resource and add it to the filtered data. If you use several keywords, then they are "AND" connected. E.g. "Stuttgart electric" will only return data which contains Stuttgart and electric. Thereby both words can appear in different places of the resource.
Column filter (pic 2)
On top of the most columns the filter symbol provides filter options. Depending on the content type (e.g. text, number, date) different filter options will be provided. All column filter are "AND" connected therefore reducing the amount of shown data. Column filters can also be used together with the key word filter.
All filters can be cleaned using the clean-filter button (pic 8)
Adjust table columns
All columns can be adjusted in width by moving the separator between the column headers (pic 3). The order of the columns can be changed by you via dragging the column header to the desired position (pic 4). The button resize-table (pic 5) allows you to get your table back to screen size. A small 'x' at the left upper corner of each table header (pic 6).
With the column selector (pic 7) you can select additional columns to your table configuration.

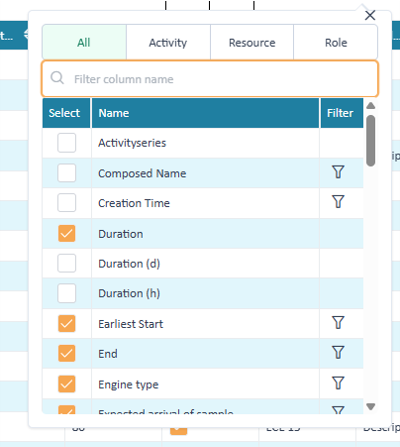

Column selector
Within the column chooser you can also set column filters. This becomes particular interesting if you want to filter data by a column but not see the column. E.g. if your filter all data by a just one location, there is no point to display that column in which each row has the same value.
Store your settings
The list view settings can be stored as favorite (pic 8). After saving the name of the list view will change according to your favorite name.
The stored favorites can be reused as data source for widgets in the dashboard.
Inspect your project details in the detail page
To get more information about a data row you have 3 options
- double click the row will open a dialog to display the selected data with the detail page
PeakTMS uses a generic page to provide you with the specific data. Depending on resource types the page might be simple with just a few basic information or complex with descriptions containing more than 100 attributes.

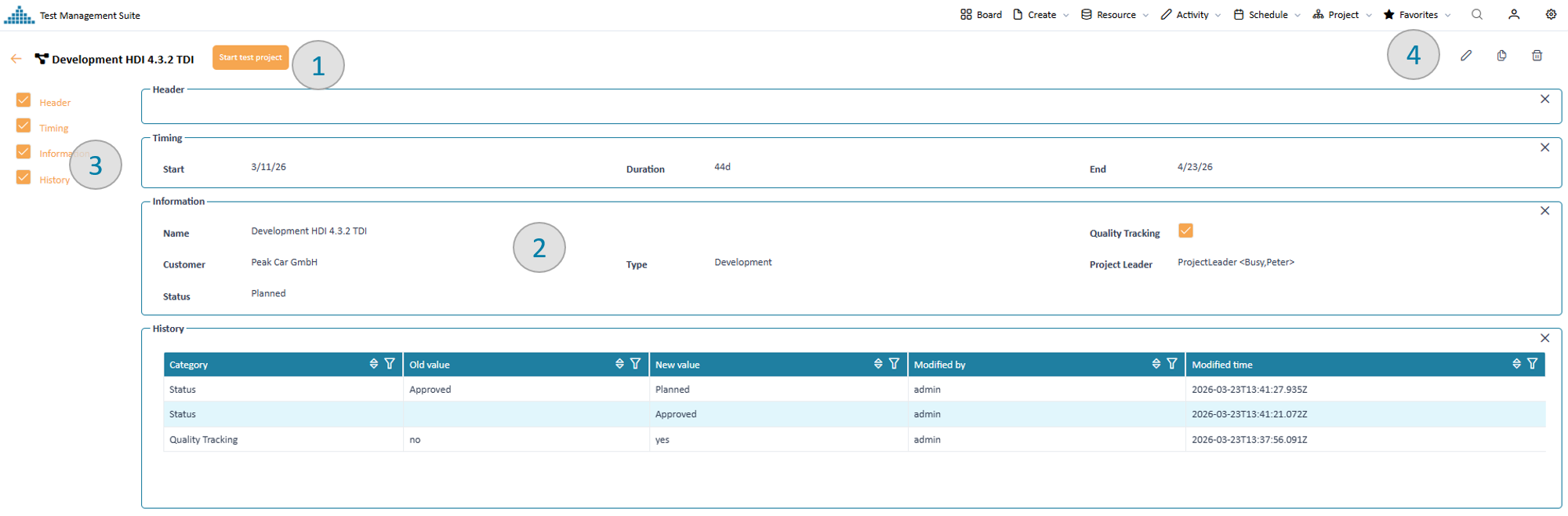

Detail page
The page design includes 4 major areas:
Navigator (pic 1)
The navigator provides an overview over different data groups of information shown in the page. Via clicking on the links of the items in the navigator the system will scroll to the corresponding data group. Disabling the checkboxes in front of the items will remove the corresponding data groups from the visible screen. This allows to focus only on data aspects you are interested in. The settings will be remembered by the system until you log out.
Worfklow (pic 2)
At the left upper corner you might find some buttons to change the state of data according to the workflow configured by your administration. In case there are no buttons you either do not have the permissions or for the current data no workflow action is possible.
Editing toolbar (pic 3)
The toolbar at the left corner provides buttons to edit / copy and delete depending on your specific rights onto the data. In case a report has been defined you find a button to download relevant reports of the data.
Grouped data panel (pic 4)
In the center you find groups of all relevant data about the displayed resource.
History
If the log function is enabled for the resource type all changes since creation of the resources are listed in the history table. You can use filter functions to search for relevant changes by different system users.
Create or edit projects
Create:
You can trigger the creation of new projects from the application menu 'create' (pic 1) and from the list view (pic 2)

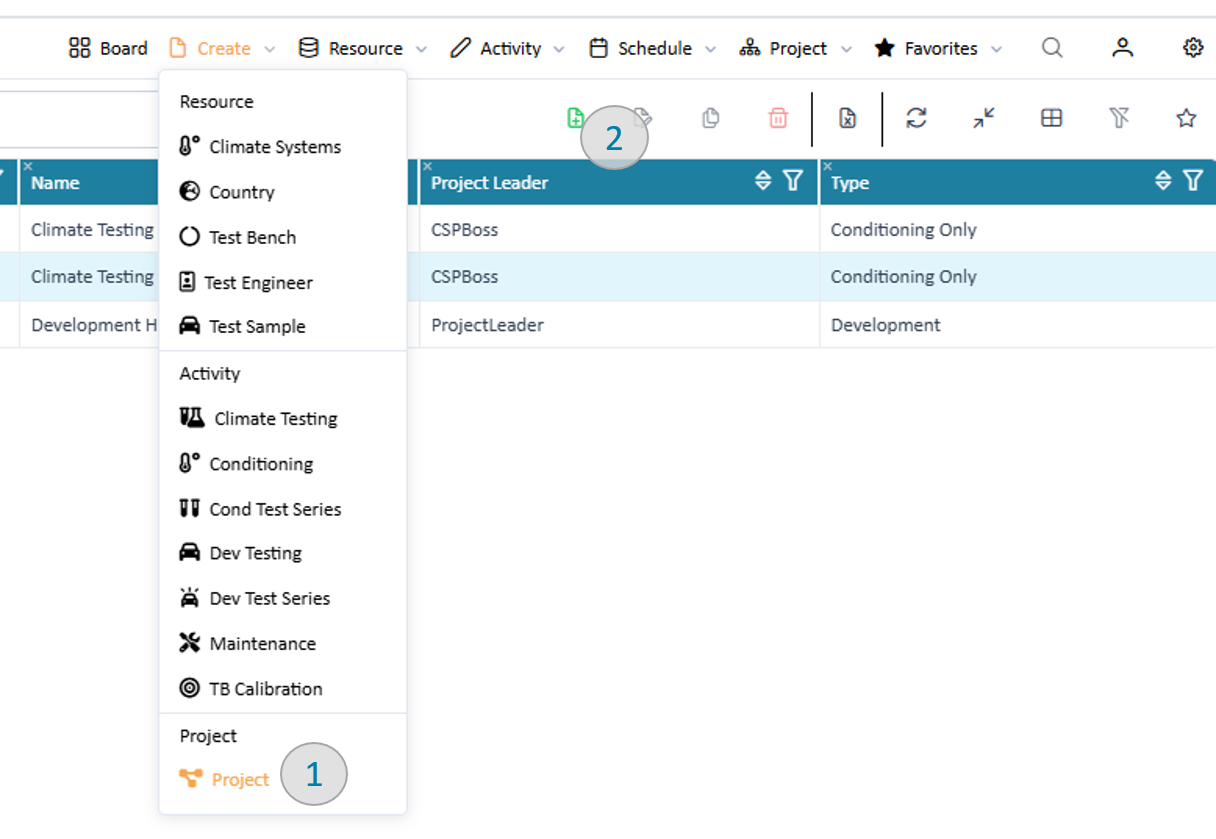

Trigger new project
Edit:
You can start editing a projects using the edit button in the list view or detail page.

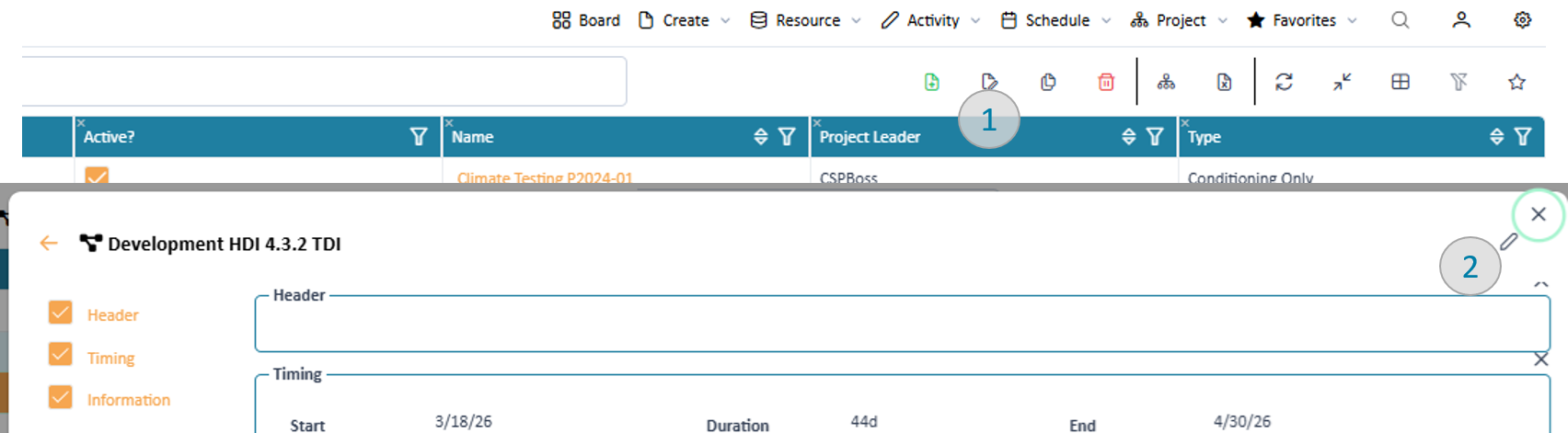

Trigger edit projects
In both cases you will enter the detail page in edit mode. The application will provide you with an assisted input form.

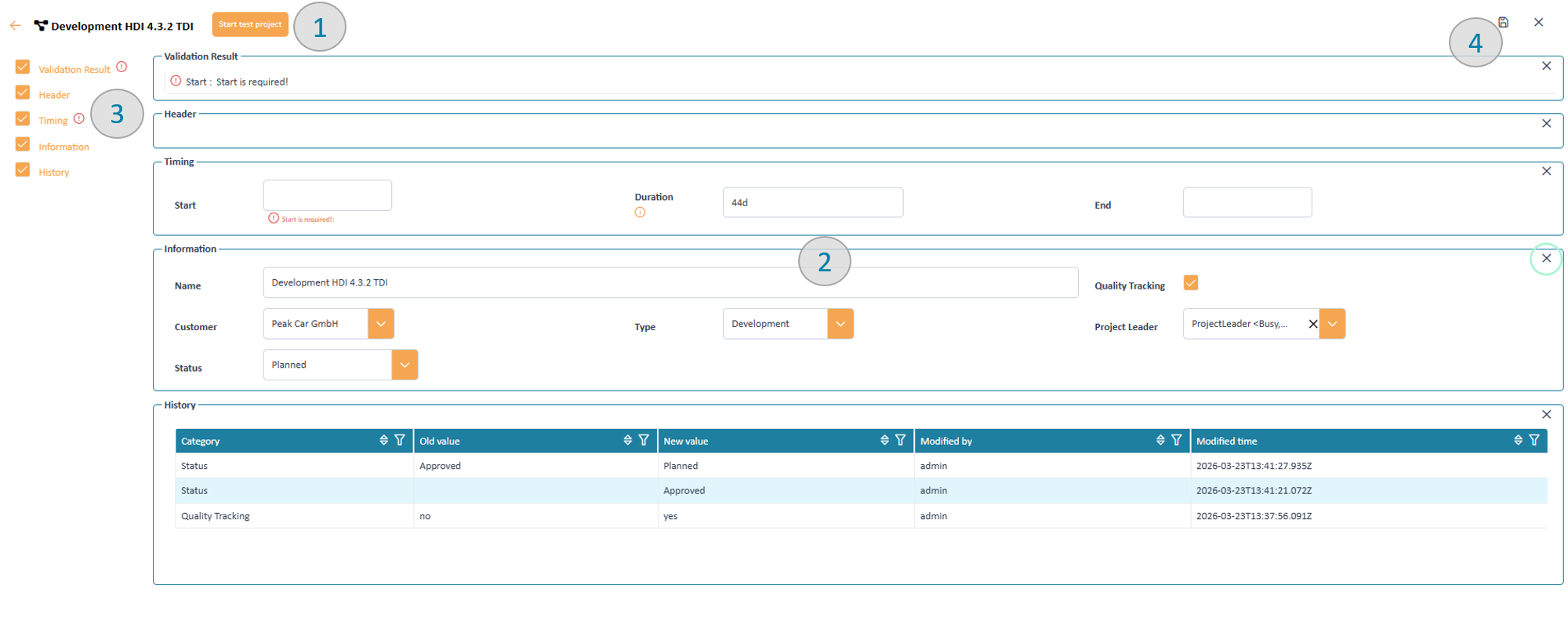

Trigger new projects
For each parameter the input form will provide an input field, if you have the rights to edit it. Whenever you edit a field a validation will be conducted. As a result of the validation the occoring warnings and errors will be displayed in the top validation area as summary (pic 1) and below each invalid field (2).
Additionally, the navigator will highlight data groups with in valid parameters (pic 3). If all errors are resolved (warnings might remain) you can save the resource (pic 4). Note that when finally saving a resource additional validations might be executed, depending on your organisation workflow.
Plan projects
Read in project plan module how to plan projects.
Export projects
Sie können die dargestellten Daten der Tabelle nach MS Excel exportieren. Dabei werden alle in der Tabelle angezeigten Spalten exportiert.
Trigger a resource export
In the project plan module you can export the entire project plan.
