Examples

Along with some examples in following a few ideas for how to write rules in the Drools language and therefore enhance your TMS business logic grouped by the different business entities of TMS. All examples are made compatible with the data in our DEMO showcase.

Examples on resource related rules

We group all resource related files within the same rule set files which will have the following header

package com.peaksolution.tms.drools.resource.test

import com.peaksolution.rules.model.Resource;
import com.peaksolution.rules.model.Validator;
import com.peaksolution.rules.model.SessionContext;
import com.peaksolution.rules.model.Attribute;

global Validator validator;
global SessionContext sessionContext;

Raising an error based on a condition

The following example conducts a check on a date and raises an error message if it is expired.

rule "Testbench Calibration"
    when
        $r: Resource($attrs : attributes)
        $attr: Attribute(name == "NEXT_CAL_DATE", getValueAsDate().before(new java.util.Date())) from $attrs
    then
        validator.error("This test bench needs calibration!", $attr);
end

Raising a warning based on a condition

The next example will recommend the user a calibration interval of less than a year, if the supported engine type is “Electric”.

rule "Testbench Calibration intervall for Electric"
    when
        $r: Resource($attrs : attributes)
        $attrElectr: Attribute(name == "FUEL_TYPE", "Elec-tric".equals(getValueAsString())) from $attrs
        $attr: Attribute(name == "CAL_INTERVAL", getValueAsLong() < 365) from $attrs
    then
        validator.warning("Better calibrate the testbench twice a year", $attr);
end

Restricting a number field (maximum temperature)

In following the input value of the volume for a climate chambers is restricted to a certain number range.

rule "Restrict Climate chamber volume"
    when
        $r: Resource($attrs : attributes)
        $attr: Attribute(name == "VOLUME") from $attrs
    then
        $attr.getRestriction().setMinAsDecimal(java.math.BigDecimal.valueOf(1.0));
        $attr.getRestriction().setMaxAsDecimal(java.math.BigDecimal.valueOf(2.0));
end

Restricting a value list field (Supplier list)

In following the supplier list of a climate chamber is reduced to just 2 possible entries.

rule "Restrict Supplier list"
    when
        $r: Resource($attrs : attributes)
        $attr: Attribute(name == "SUPPLIER") from $attrs
    then
        $attr.getRestriction().setAllowedValues("Peak Climate Systems Creation N.V.", "Peak Engine Testbench Ltd.");
end

Examples on activities related rules

We group all files within the same rule set files which will have the following header

package com.peaksolution.tms.drools.activity.test

import com.peaksolution.rules.model.Activity;
import com.peaksolution.rules.model.Resource;
import com.peaksolution.rules.model.Validator;
import com.peaksolution.rules.model.SessionContext;
import com.peaksolution.rules.model.Attribute;

global Validator validator;
global SessionContext sessionContext;

Setting duration of an activity in dependence of input fields

The example below specifies for different test cycles the duration of a test and disables the duration field.

rule "Set Duration for FTP 72"
    when
        $activity: Activity()
        $attrCycle: Attribute(getName() == "TEST_CYCLE", getValueAsString()  == "FTP 72")
    then
        $activity.setEnd($activity.getBegin().plusHours(7));
end

rule "Set Duration for ECE 15"
    when
        $activity: Activity()
        $attrCycle: Attribute(getName() == "TEST_CYCLE", getValueAsString()  == "ECE 15")
    then
        $activity.setEnd($activity.getBegin().plusHours(6));
end

The mask will accordingly apply the rule and change the fields „duration” and “end” accordingly in any input mask but also, when a test is saved in the backend, e.g. via REST API.

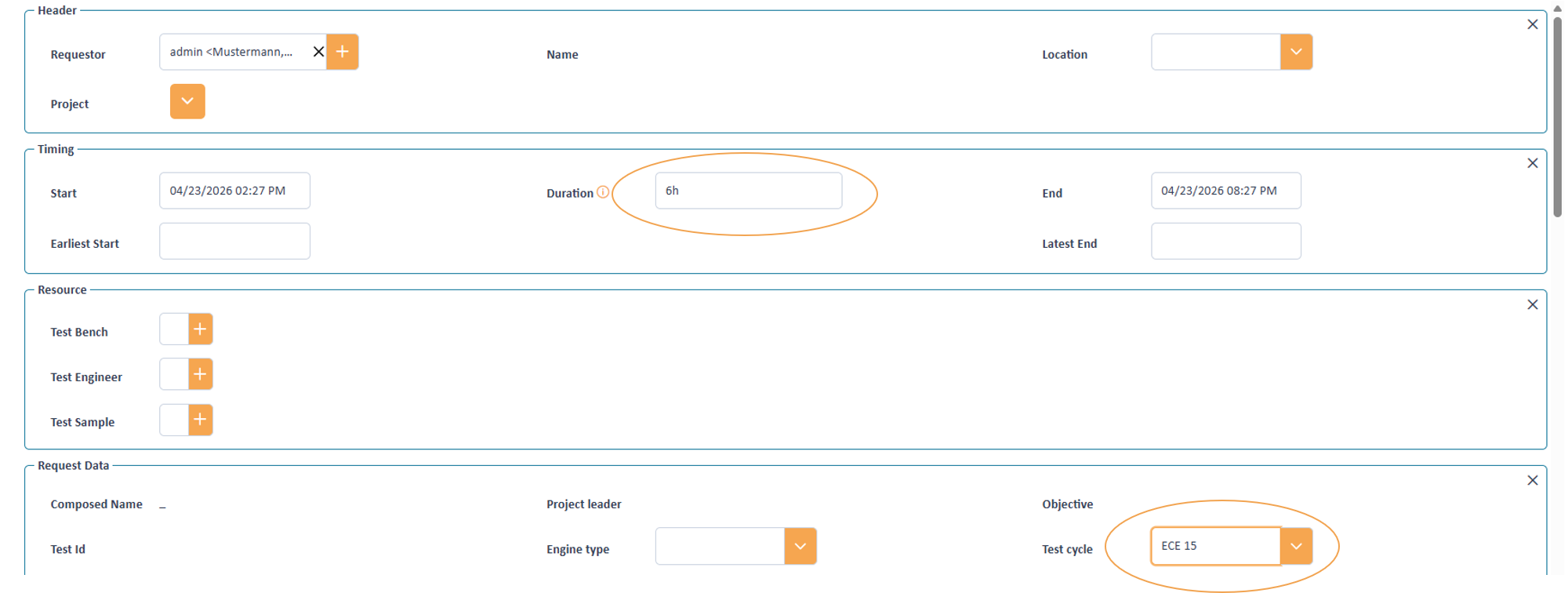

Setting duration based on a test cycle

Declare hidden attributes (cookies)

The following code declares a field as hidden attribute. Here e.g. some technical relevant data could be transported which is not supposed to be seen by the user. Please note, that this only makes the information invisible in the masks. If the administration adds this attribute as column to the table configuration than still it is visible in table and eventually tooltips.

rule "Make hidden comment not visible (e.g. for use as cookie)"
    when
        $attrHiddenComment: Attribute(getName() == "HIDDEN_COMMENT")
    then
        $attrHiddenComment.setVisible(false);
end

Copy a summary of an assigned resource into the activity

This example looks for an assigned sample, reads out some of the basic information and summarizes the information in a field of the activity (e.g. for later use in a tooltip).

rule "Taking over attributes from an assigned resource into a summary field"
    when
        Activity($assignedResources: resourceAssignments)
        $sample: Resource(getTypeName() == "CAR", $sampleAttributes: attributes)
           from $assignedResources
        $attrCarId: Attribute(getName() == "SAMPLE_NR") from $sampleAttributes
        $attrProducer: Attribute(getName() == "PRODUCER") from $sampleAttributes
        $attrBuilddate: Attribute(getName() == "BUILD_DATE") from $sampleAttributes
        $attrSampleSummary: Attribute(getName() == "TEST_DESCRIPTION")
    then
        $attrSampleSummary.setValueAsString("Sample: "
            + $attrCarId.getValueAsString()
            + " " + $attrProducer.getValueAsString()
            + " " + $attrBuilddate.getValueAsString());
end

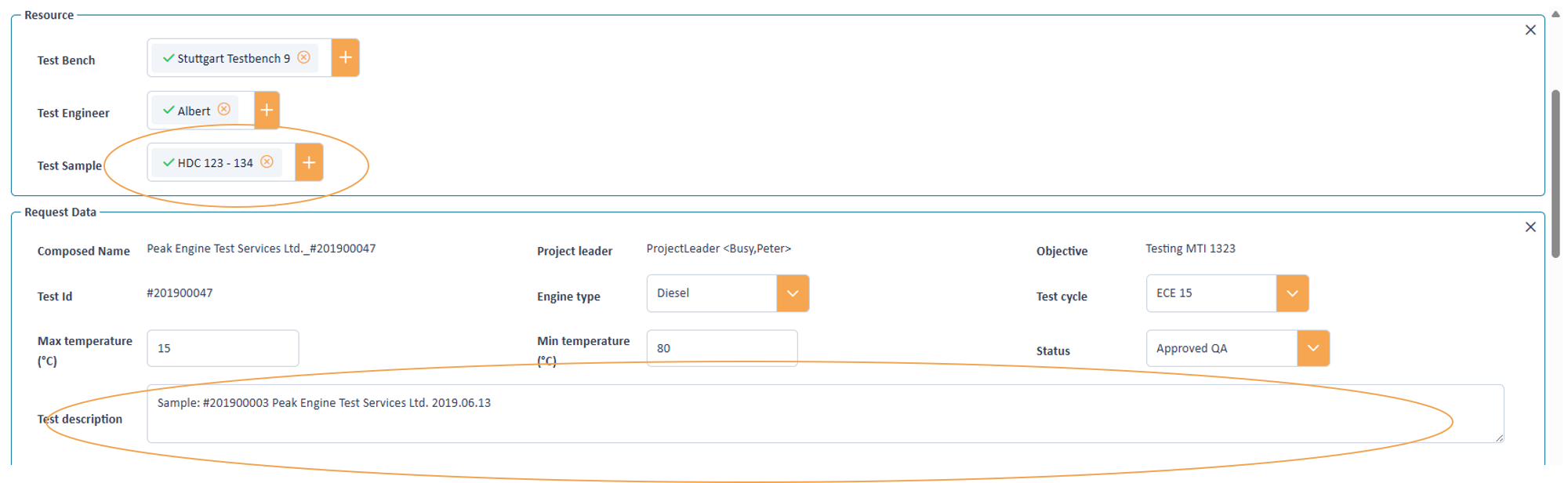

Writing resource information into a test fied

In case we might have more than 1 sample the code needs to be adapted:

Now we write 2 rules. One rule sets the text field empty by default. The next one creates the summary. Note that here the Then statement is automatically executed for each record set the when condition is matched. With the parameter salience = 20 we make sure, that we first cleanup the field before we execute the rule to add the summaries of the resources which has salience = 10. Note also that the than part of the rule “Taking over attributes from an assigned resource into a summary field” is executed twice, once for each matching record.

rule "empty sample summary field"
    salience = 20
    when
        $attrSampleSummary: Attribute(getName() == "TEST_DESCRIPTION")
    then
        $attrSampleSummary.setValueAsString("");
end

rule "Taking over attributes from an assigned resource into a summary field"
    salience = 10
    when
        Activity($assignedResources: resourceAssignments)
        $sample: Resource(getTypeName() == "CAR", $sampleAttributes: attributes) from
              $assignedResources
        $attrCarId: Attribute(getName() == "SAMPLE_NR") from $sampleAttributes
        $attrProducer: Attribute(getName() == "PRODUCER") from $sampleAttributes
        $attrBuilddate: Attribute(getName() == "BUILD_DATE") from $sampleAttributes
        $attrSampleSummary: Attribute(getName() == "TEST_DESCRIPTION")
    then
        $attrSampleSummary.setValueAsString($attrSampleSummary.getValueAsString()
            + ($attrSampleSummary.getValueAsString().isEmpty() ? "" : "\n")
            + "Sample: " + $attrCarId.getValueAsString()
            + " " + $attrProducer.getValueAsString()
            + " " + $attrBuilddate.getValueAsString());
end

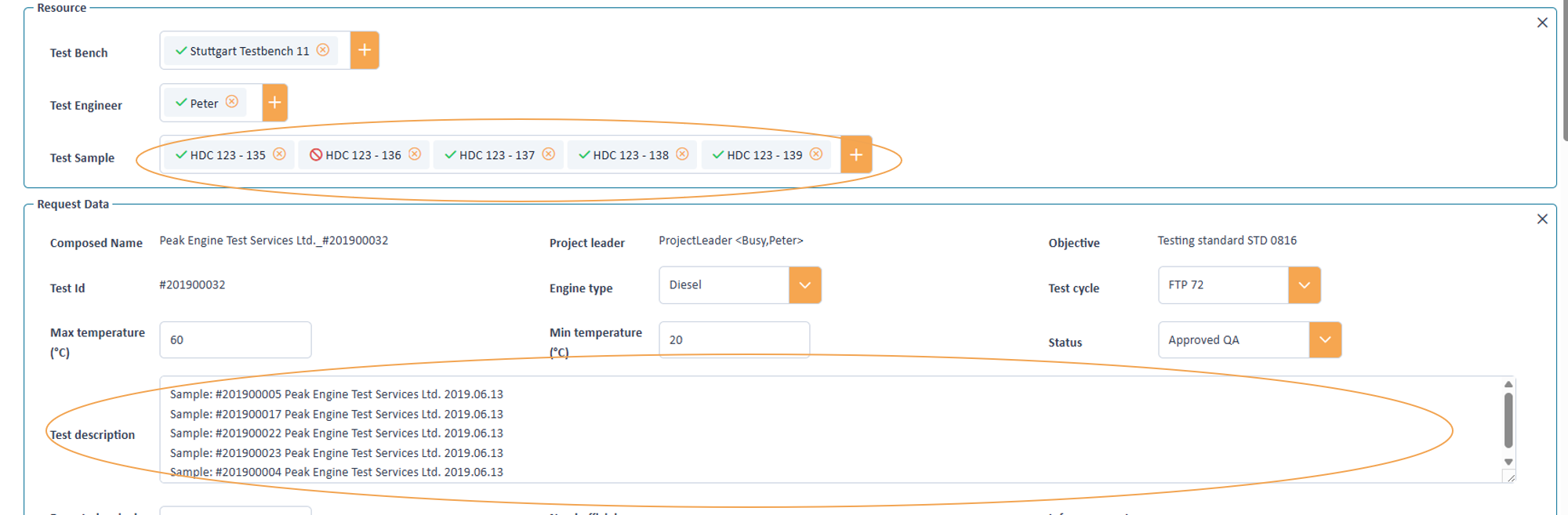

Writing resource information into a test fied

Examples on activity series

We group all resource related files within the same rule set files which will have the following header

package com.peaksolution.tms.drools.test

import com.peaksolution.rules.model.Activity;
import com.peaksolution.rules.model.ActivitySeries;
import com.peaksolution.rules.model.Resource;
import com.peaksolution.rules.model.Validator;
import com.peaksolution.rules.model.SessionContext;
import com.peaksolution.rules.model.Attribute;

global Validator validator;
global SessionContext sessionContext;

Setting minimum duration

The following rule specifies, that the duration of an activity series can not be shorter than 7 days, elsewise it will just override the duration.

rule "Override duration with at least 7 days"
    when
        $series: ActivitySeries(end.minusDays(7).isBefore(begin))

    then
        $series.setEnd($series.getBegin().plusDays(7));
end

Examples of interactions between different entities

We group all resource related files within the same rule set files which will have the following header

package com.peaksolution.tms.drools.test

import com.peaksolution.rules.model.Activity;
import com.peaksolution.rules.model.ActivitySeries;
import com.peaksolution.rules.model.Project;
import com.peaksolution.rules.model.Resource;
import com.peaksolution.rules.model.Validator;
import com.peaksolution.rules.model.SessionContext;
import com.peaksolution.rules.model.Attribute;

global Validator validator;
global SessionContext sessionContext;

Restricting a value list in an activity / series based on multiselect field in a project

The following code uses a multi selection field in a project to limit the possible entries within a dependent activity.

rule "restrict engine types "
    when
        $project: Project($pAttributes: attributes)
        $attrAllowedEngTypes: Attribute(name == "ALLOWED_ENGINE_TYPES") from $pAt-tributes
        $attrEngineType: Attribute(name == "ENGINE_TYPE")
    then
        $attrEngineType.getRestriction().setAllowedValues($attrAllowedEngTypes.
                       getSelectedStringValues());
end

Taking over begin and end of an activity series into an activity

If an activity is part of a series, then its beginning and end will be automatically set as earliest start date and latest end date.

rule "Earliest Start latest End take over"

 when
      $activity: Activity();
      $series: ActivitySeries(getId() != null)
    then
      $activity.setEarliestStart($series.getBegin());
      $activity.setLatestEnd($series.getEnd());
end
