Crash Analysis - HIC Example#
At “Arbeitskreises Messdatenverarbeitung Fahrzeugsicherheit” (MDVFS) you can find the “Description of Injury Criteria for Vehicle Safety Tests” for free download which contains the definition of the calculation of all injury criterias including the “Head Injury Criterion” or short HIC.
And in this Notebook we’ll show you, how you can get the needed channel data from an ASAM ODS server and do the HIC calculation.
👉 Please note: Even though we’ve studied the specification document and did the implementation seriously, we cannot guarantee the calculated HIC value to be correct.
👉 Please further note: This notebook uses the Crashtest Data Server - this server is not accessible through public APIs. So you cannot execute this notebook in the open source environment.
Dependencies for this notebook#
💡The ASAM ODSBox contains some functionality that wraps the ODS HTTP API making using Python easier. And for sure you need some other libraries like numpy to do the calculation work…
try:
import odsbox
except ImportError:
%pip install odsbox
import numpy as np
import scipy.signal as signal
import matplotlib.pyplot as plt
from odsbox.con_i import ConI
from odsbox.submatrix_to_pandas import submatrix_to_pandas
Head Injury Criterion or short HIC#
The formula for HIC is:
with the resultant acceleration a_res of the center of gravity of the head in units of acceleration of gravity (1 g = 9.81 m/s²). t1 and t2 mark the lower and upper limit of the time range during an impact in which the HIC value is maximum. Measured times are to be given in seconds.
The formula for the resultant acceleration is:
Where:
( a_x ) is the acceleration in the ( x )-direction.
( a_y ) is the acceleration in the ( y )-direction.
( a_z ) is the acceleration in the ( z )-direction.
The measured channels of the head acceleration (a_x , a_y , a_z ) are filtered in accordance with CFC 1000.
Establish session#
The ODS HTTP API is a session based API. The session ID is called con_i in the ODS documentation. The ASAM ODSBox uses con_i as API object representing the session. Close this session to release the connection license. Otherwise the session will be auto closed after 30 minutes of inactivity.
👉 Please note: This notebook uses the Crashtest Data Server - this server is not accessible through public APIs. So you cannot connect to this server below.
con_i = ConI(url='http://localhost:8087/api', auth=('sa','sa'))
Load Data#
The data we’re looking for are the measured channels of the head acceleration (a_x , a_y , a_z )
The ISO TS 13499 code describes the input channels for the HIC as follows:
? ? HEAD 00 00 ?? AC X A :Head Acceleration X, CFC 1000
? ? HEAD 00 00 ?? AC Y A :Head Acceleration Y, CFC 1000
? ? HEAD 00 00 ?? AC Z A :Head Acceleration Z, CFC 1000
? ? HEAD 00 00 ?? AC X B :Head Acceleration X, CFC 600, (UN-R80)
? ? HEAD 00 00 ?? AC Y B :Head Acceleration Y, CFC 600, (UN-R80)
? ? HEAD 00 00 ?? AC Z B :Head Acceleration Z, CFC 600, (UN-R80)
So we’re loading a crash test data set and extract the channels we need. Below is a screenshot on how the data is displayed in the server:
The query definition is according to the hierarchy: / VOLKSWAGEN ATLAS / IMPACTOR INTO VEHICLE / * / 10136 / * / CHANNEL_3500Values_1
sms = con_i.query_data({
"SubMatrix": {
"measurement.test.parent_test.parent_test.parent_test.name": "VOLKSWAGEN ATLAS",
"measurement.test.parent_test.parent_test.name": "IMPACTOR INTO VEHICLE",
"measurement.test.name": "10136",
"name" : "CHANNEL_3500Values_1"
},
"$attributes": {
"Name": 1,
"Id": 1
},
"$options": {"$rowlimit": 100}
})
submatrix_id = sms["SubMatrix.Id"].iloc[0]
# We need the data as a pandas DataFrame
df = submatrix_to_pandas(con_i, submatrix_id)
# The time channel is the index of the DataFrame
df.set_index("00TIRS000001TI00", inplace=True)
# Extract the head acceleration channels
a_x = df["24HEADCG0000ACXP"];
a_y = df["24HEADCG0000ACYP"];
a_z = df["24HEADCG0000ACZP"];

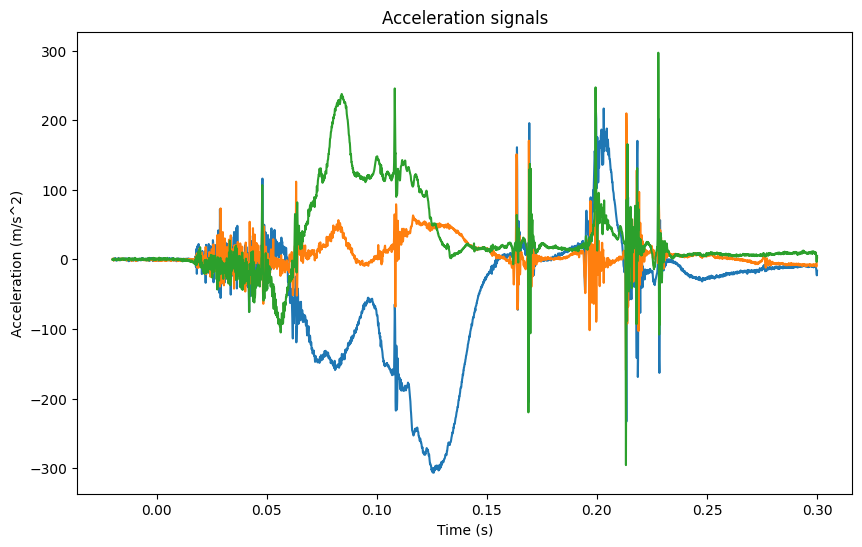

Plot the acceleration channels#
plt.figure(figsize=(10, 6))
plt.plot(a_x)
plt.plot(a_y)
plt.plot(a_z)
plt.xlabel('Time (s)')
plt.ylabel('Acceleration (m/s^2)')
plt.title('Acceleration signals')
plt.show()
Some library functions we need#
CFC Filter#
The measured channels of the head acceleration (ax , ay , az ) are filtered in accordance with CFC 1000 (c.f. CFC Filters).
def cfc_1000_filter(data, cutoff_frequency=1000, sampling_rate=10000):
filter_order = 4
# Normalize the cutoff frequency with respect to the Nyquist frequency
nyquist_frequency = 0.5 * sampling_rate
normalized_cutoff = cutoff_frequency / nyquist_frequency
# Design the Butterworth filter
b, a = signal.butter(filter_order, normalized_cutoff, btype='low', analog=False)
# Apply the filter to the data
filtered_data = signal.filtfilt(b, a, data)
return filtered_data

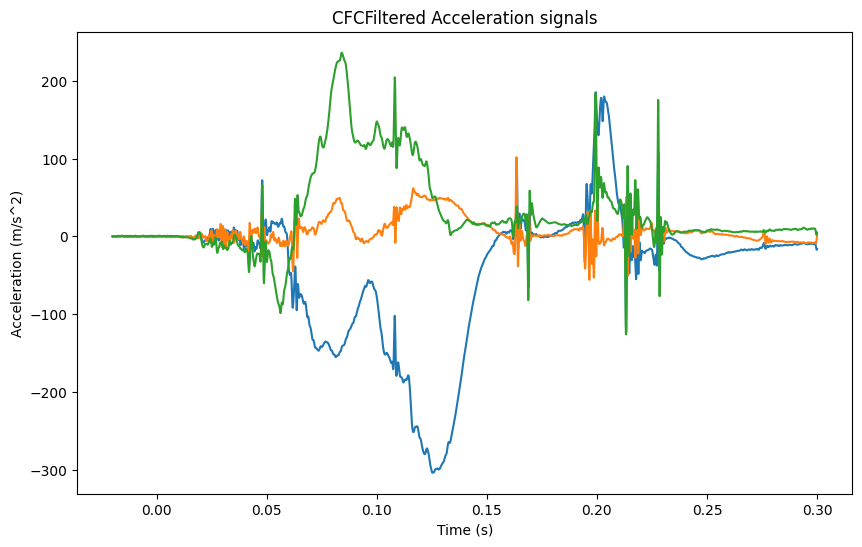

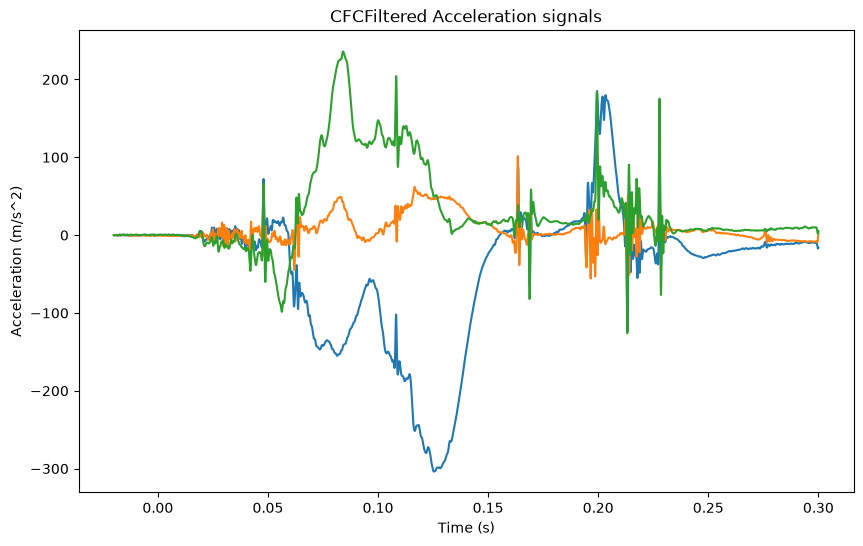

Let’s apply the filter for our signals
a_x = cfc_1000_filter(a_x)
a_y = cfc_1000_filter(a_y)
a_z = cfc_1000_filter(a_z)
time_array = np.array(df.index)
plt.figure(figsize=(10, 6))
plt.plot(time_array, a_x)
plt.plot(time_array, a_y)
plt.plot(time_array, a_z)
plt.xlabel('Time (s)')
plt.ylabel('Acceleration (m/s^2)')
plt.title('CFCFiltered Acceleration signals')
plt.show()
Resultant Acceleration#
We need the resultant acceleration of the center of gravity of the head in units of acceleration of gravity (1 g = 9.81 m/s²)
g = 9.81 # m/s^2
def calculate_resultant_in_g(c1, c2, c3):
if c1 is None or c2 is None or c3 is None:
return None
# Calculate resultant acceleration
resultant_in_g = ((c1 ** 2 + c2 ** 2 + c3 ** 2) ** (1 / 2)) / g
return resultant_in_g

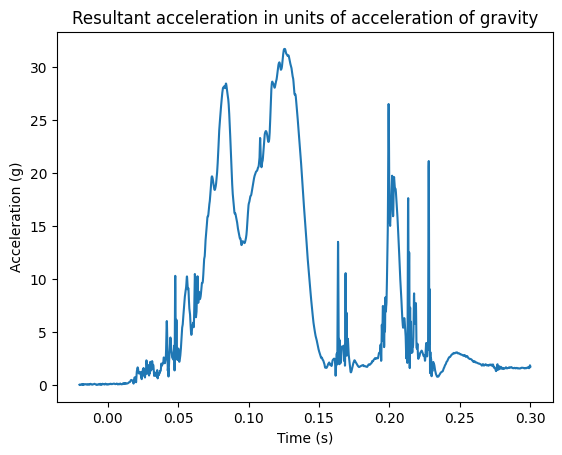

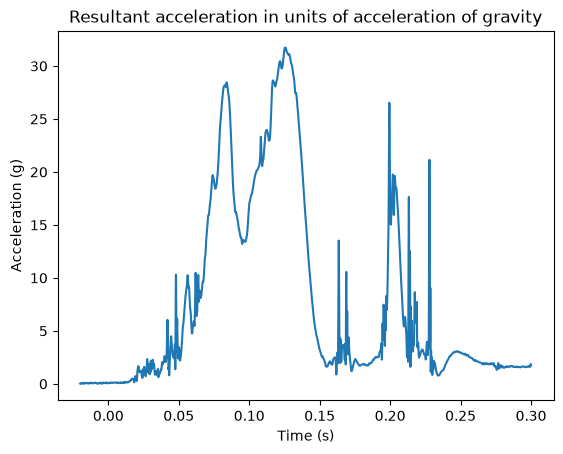

Let’s calculate and plot the resultant acceleration
a_res = calculate_resultant_in_g(a_x, a_y, a_z)
plt.plot(time_array, a_res)
plt.xlabel('Time (s)')
plt.ylabel('Acceleration (g)')
plt.title('Resultant acceleration in units of acceleration of gravity')
plt.show()
HIC Calculation#
Now that we have calculated the needed input variables, we calculate the actual HIC value as the maximum of the integral of the resultant acceleration for a given time span (typical 15 or 36 ms)
#from scipy import integrate
from scipy.stats import trapezoid
def calculate_hic(acc, time_array, max_delta_t):
assert 0 < max_delta_t < 100
if acc is None:
return None
max_delta_t *= 1e-3 # detal_t is in ms, we need it in s
res = 0
res_t1 = None
res_t2 = None
# Now calculate the moving integral with the maximum being the HIC
for idx_1, t1 in enumerate(time_array[:-1]):
upper_limit_idx = (t1 + max_delta_t <= time_array).argmax()
idx_2 = upper_limit_idx - 1
t2 = time_array[idx_2]
data = np.interp(time_array[idx_1:idx_2+1], time_array, acc, left=0, right=0)
a_int = np.trapz(data, time_array[idx_1:idx_2+1])
new_res = (t2 - t1) * (1 / (t2 - t1) * a_int) ** 2.5
if new_res > res:
res = new_res
res_t1 = t1
res_t2 = t2
return res;
time_channel = np.array(df.index)
HIC36 = 36 #ms
HIC15 = 15 #ms
HIC = calculate_hic(a_res, time_channel, HIC15);
C:\Users\sro\AppData\Local\Temp\ipykernel_15516\3909717835.py:25: DeprecationWarning: `trapz` is deprecated. Use `trapezoid` instead, or one of the numerical integration functions in `scipy.integrate`.
a_int = np.trapz(data, time_array[idx_1:idx_2+1])
HIC Result#
A HIC15 (meaning a measure of impact over 15 milliseconds) of 700 is estimated to represent a 5 percent risk of a severe injury (Mertz et al., 1997). A “severe” injury is one with a score of 4+ on the Abbreviated Injury Scale (AIS)
A comprehensive searchable database of vehicles and their HIC scores is available at safercar.gov
print("HIC: " + str(HIC))
HIC: 118.87276216119807
Close session#
Don’t forget to close the session to release the connection license. Otherwise the session will be auto closed after 30 minutes of inactivity.
con_i.logout()
